PSA Nitrogen Generator

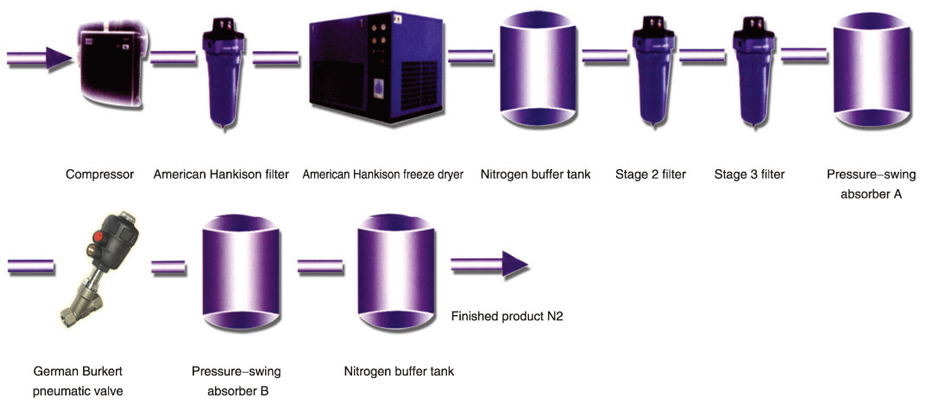

(PSA) carbon molecular sieve ammonia plant process flow chart:
Process principle:
PSA nitrogen production is based on air as raw material, using carbon molecules to select the characteristics of selective adsorption. The principle of pressure adsorption and pressure desorption is used to separate nitrogen and oxygen.
Technical parameters
| Model | Purity% |
Capacity
Nm³/h
|
Air consumption
Nm³/min
|
Overall dimension（m）
L×W×H
|
Model | Purity% |
Capacity
Nm³/h
|
Air consumption
Nm³/min
|
Overall dimension（m）
L×W×H
|
| DP-10 | 99 | 10 | 0.6 | 2.0×1.3×2.2 | DP-100 | 99 | 100 | 5.9 | 3.4×1.8×2.9 |
| 99.5 | 0.67 | 2.1×1.3×2.3 | 99.5 | 6.7 | 3.6×2.3×3.5 | ||||
| 99.9 | 0.75 | 2.2×1.4×2.4 | 99.9 | 7.5 | |||||
| 99.99 | 0.85 | 2.4×2.0×2.3 | 99.99 | 8.4 | 4.8×2.35×3.3 | ||||
| 99.9995 | 1.5 | 2.6×2.1×2.4 | |||||||
| DP-20 | 99 | 20 | 1.2 | 2.2×1.4×2.3 | DP-150 | 99 | 150 | 8.8 | 3.6×1.8×3.2 |
| 99.5 | 1.4 | 2.3×1.4×2.5 | 99.5 | 10 | |||||
| 99.9 | 1.5 | 99.9 | 11.3 | 3.8×2.2×3.6 | |||||
| 99.99 | 1.7 | 2.5×2.3×2.4 | 99.99 | 12.7 | 6.6×2.4×3.3 | ||||
| 99.9995 | 3 | 2.6×2.1×2.5 | |||||||
| DP-30 | 99 | 30 | 1.75 | 2.4×1.5×2.3 | DP-200 | 99 | 200 | 11.7 | 3.6×2.1×3.5 |
| 99.5 | 2 | 2.4×1.5×2.6 | 99.5 | 13.4 | 4.0×2.3×3.8 | ||||
| 99.9 | 2.3 | 99.9 | 15 | ||||||
| 99.99 | 2.6 | 2.6×2.1×2.4 | 99.99 | 16.8 | 7.2×2.4×3.4 | ||||
| 99.999 | 3.1 | 2.7×2.1×2.6 | |||||||
| 99.9995 | 4.5 | 2.8×1.8×2.8 | DP-250 | 99 | 250 | 14.6 | 4.2×2.1×3.6 | ||
| DP-40 | 99 | 40 | 2.4 | 2.6×1.6×2.5 | 99.5 | 16.7 | 4.3×2.3×3.8 | ||
| 99.5 | 2.7 | 2.8×1.65×2.65 | 99.9 | 18.8 | |||||
| 99.9 | 3 | DP-300 | 99 | 300 | 17.5 | 4.6×2.3×3.8 | |||
| 99.99 | 3.4 | 2.9×2.2×2.26 | 99.5 | 20.5 | 4.8×2.3×3.9 | ||||
| 99.9995 | 6 | 3.0×2.3×2.8 | 99.9 | 22.0 | |||||
| DP-50 | 99 | 50 | 3 | 2.9×1.7×2.4 | DP-350 | 99 | 350 | 20.4 | 4.7×2.3×3.9 |
| 99.5 | 3.4 | 3.0×1.7×2.5 | 99.5 | 23.4 | 4.9×2.3×4.0 | ||||
| 99.9 | 3.75 | 99.9 | 26.3 | ||||||
| 99.99 | 4.2 | 3.1×2.3×2.8 | DP-400 | 99 | 400 | 23.4 | 5.0×2.3×3.8 | ||
| 99.9995 | 7.5 | 3.2×2.3×2.9 | 99.5 | 26.7 | 5.5×2.1×4.0 | ||||
| DP-60 | 99 | 60 | 3.5 | 3.1×1.65×2.55 | 99.9 | 30 | |||
| 99.5 | 4 | 3.2×1.6×2.7 | DP-500 | 99 | 500 | 29.2 | 5.5×2.0×3.9 | ||
| 99.9 | 4.5 | 99.5 | 34 | 6.5×2.0×4.1 | |||||
| 99.99 | 5.1 | 3.4×2.3×3.1 | 99.9 | 37.6 | |||||
| 99.9995 | 9 | 3.4×2.3×3.3 | DP-600 | 99 | 600 | 35 | 6.5×2.2×3.8 | ||
| DP-70 | 99 | 70 | 4 | 3.3×1.7×2.6 | 99.5 | 40 | 7.0×2.2×4.0 | ||
| 99.5 | 4.7 | 3.4×1.7×2.8 | 99.9 | 45 | |||||
| 99.9 | 5.3 | DP-800 | 99 | 800 | 46.7 | 7.6×2.3×4.1 | |||
| 99.99 | 5.9 | 3.6×2.3×3.5 | 99.5 | 53.4 | 7.8×2.3×4.3 | ||||
| DP-80 | 99 | 80 | 4.7 | 3.6×1.8×2.9 | 99.9 | 60 | |||
| 99.5 | 5.4 | 3.8×1.9×3.1 | DP-1000 | 99 | 1000 | 58.4 | 8.2×2.3×4.3 | ||
| 99.9 | 6 | 99.5 | 66.7 | 8.8×2.3×4.5 | |||||
| 99.99 | 6.7 | 4.2×2.35×3.2 | 99.9 | 75 |
